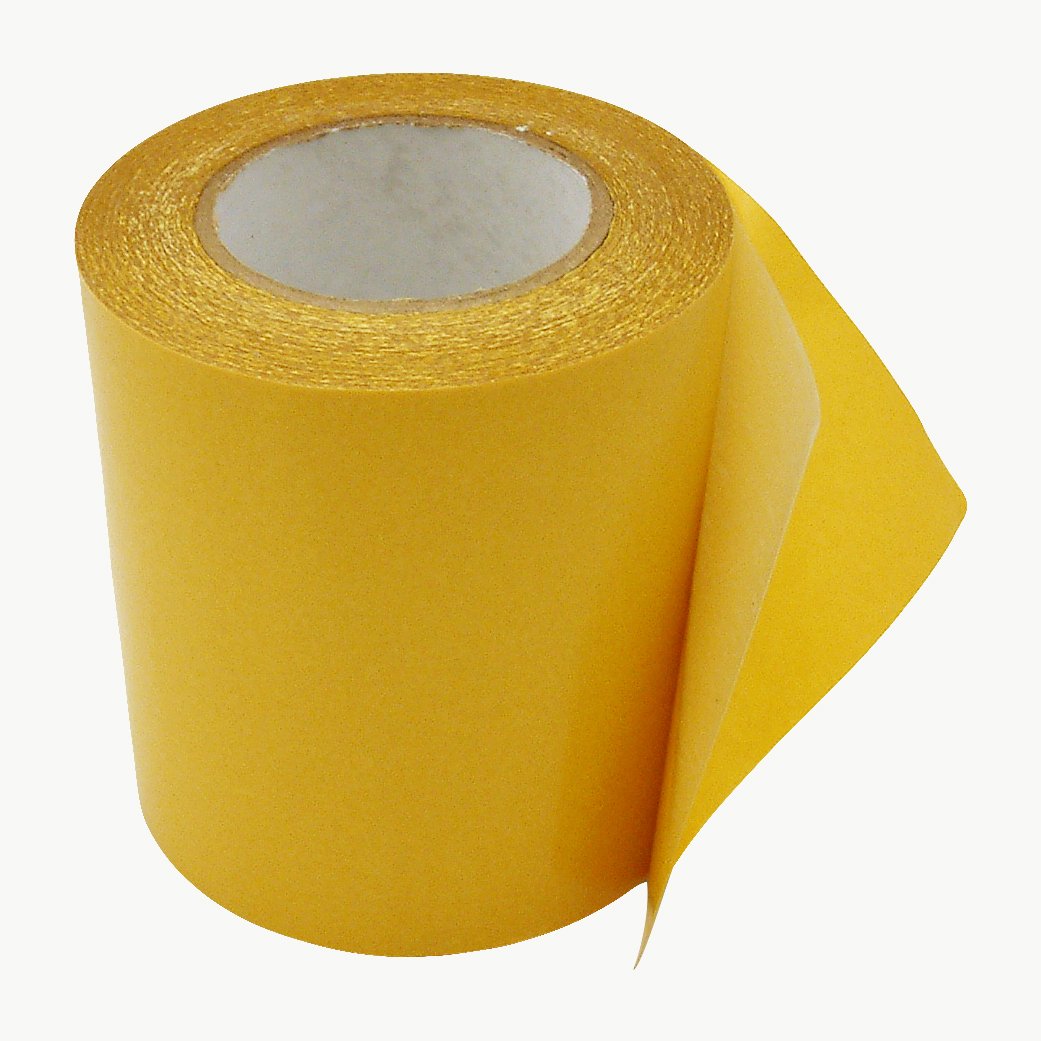

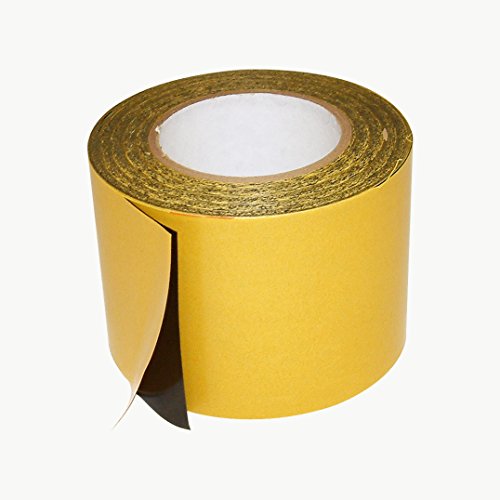

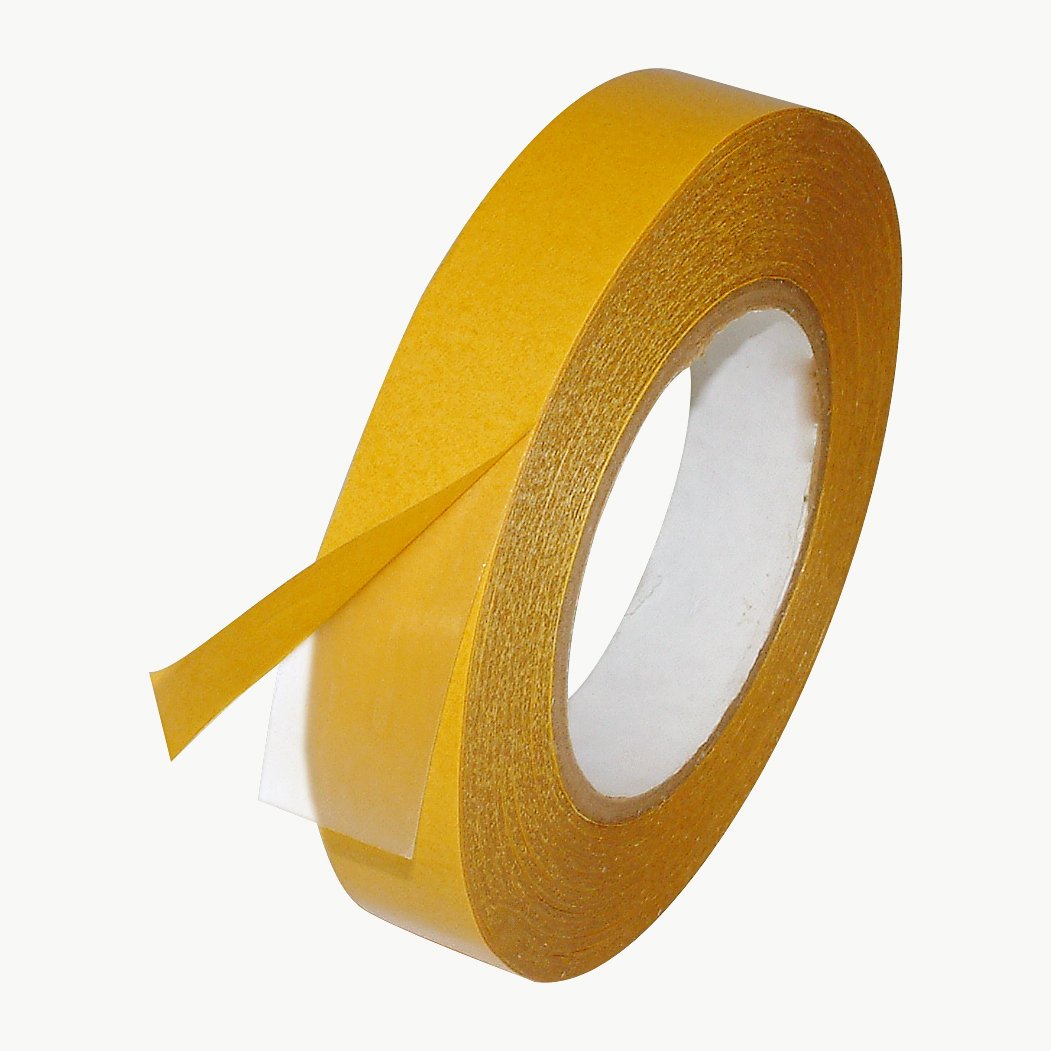

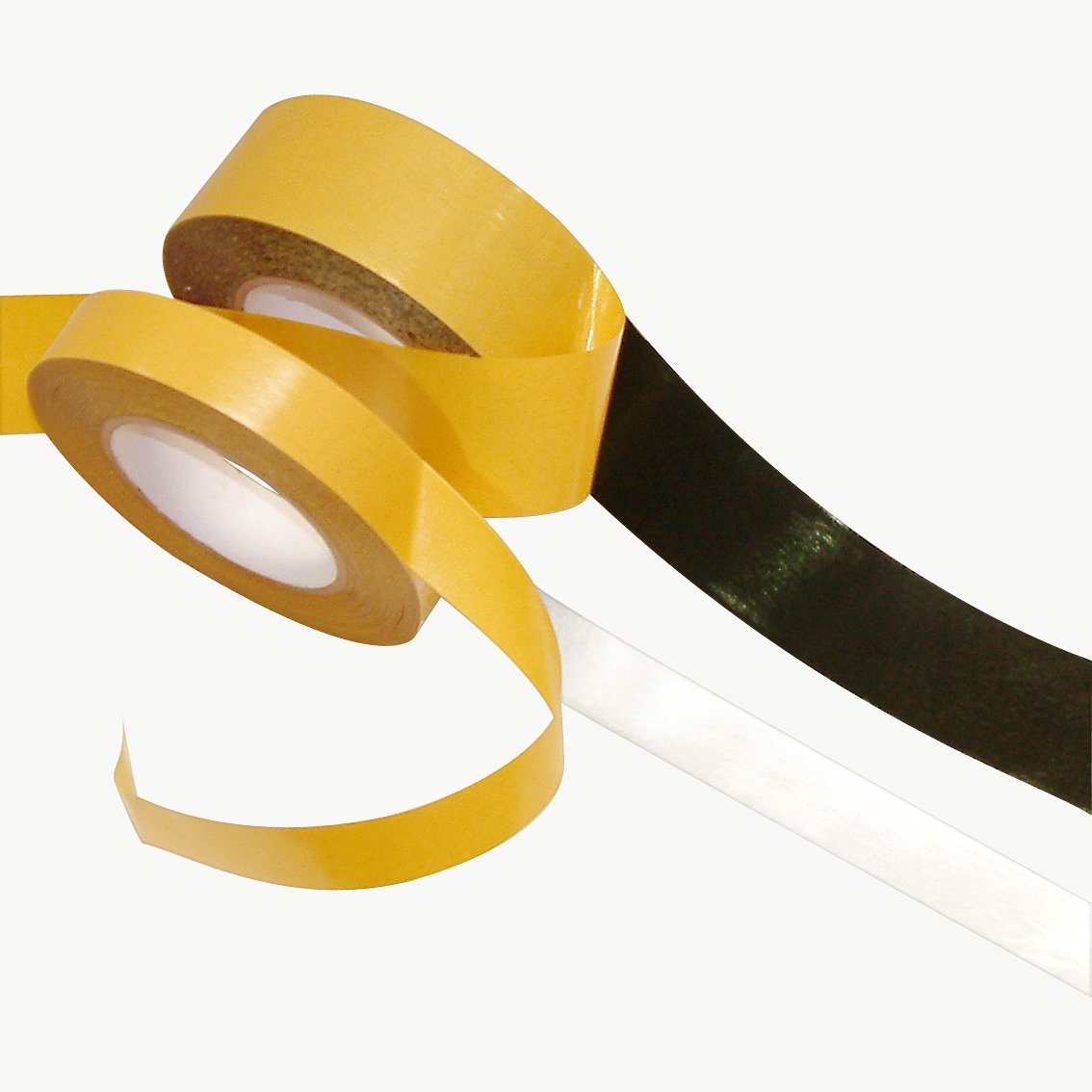

JVCC DC-4420LB Double-Sided PVC Tape is a PVC film coated on both sides with a water-based acrylic adhesive. The tape comes on a gold siliconized paper liner. The adhesive system on this double-sided (AKA double-coated) tape is very aggressive and will bond to nearly all materials (even on difficult surfaces like foams, PE and PP films).
It has excellent temperature, UV, aging, and water vapor resistance. Used for bonding rubber, plastic, metal, and wood substrates and for permanent mounting of nameplates, posters, and mats.
Also for hemming vinyl banners and decorative trim on appliances and furniture. Has a one hour dwell before adhesion reaches maximum adhesiveness.
Carrier/Backing polyvinyl chloride (PVC) film. Adhesive water-based acrylic. Release Liner gold siliconized paper. Thickness 10.7 mils (carrier, adhesive, liner) 7.87 mils (carrier, adhesive) 3.2 mils (carrier) 2.9 mils (liner).
Adhesion 157 ounces per inch (to stainless steel test panel). Service/Operating Temperature -40F to 176F. Shear Resistance 14 pounds per square inch. Core 3-inch diameter neutral.
