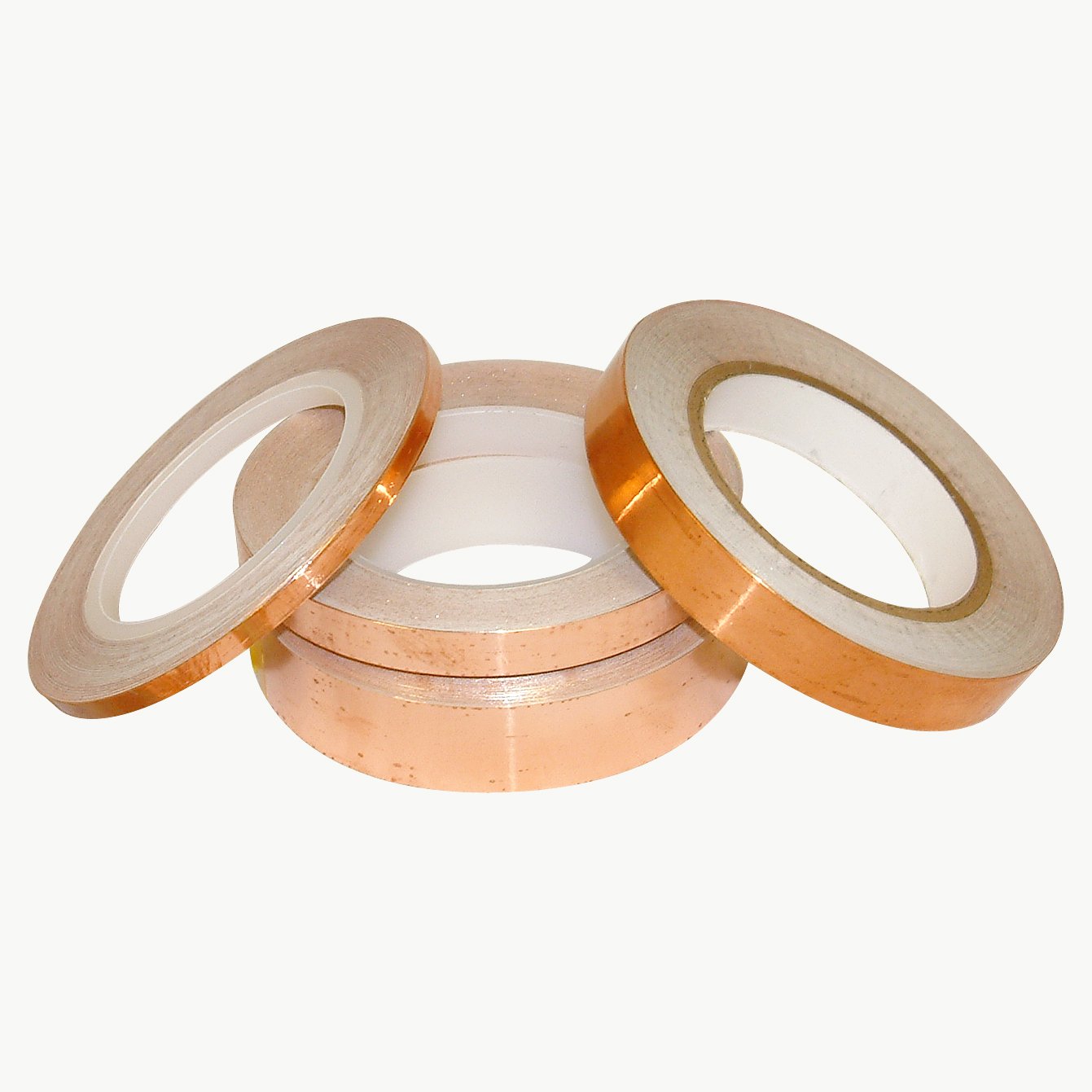

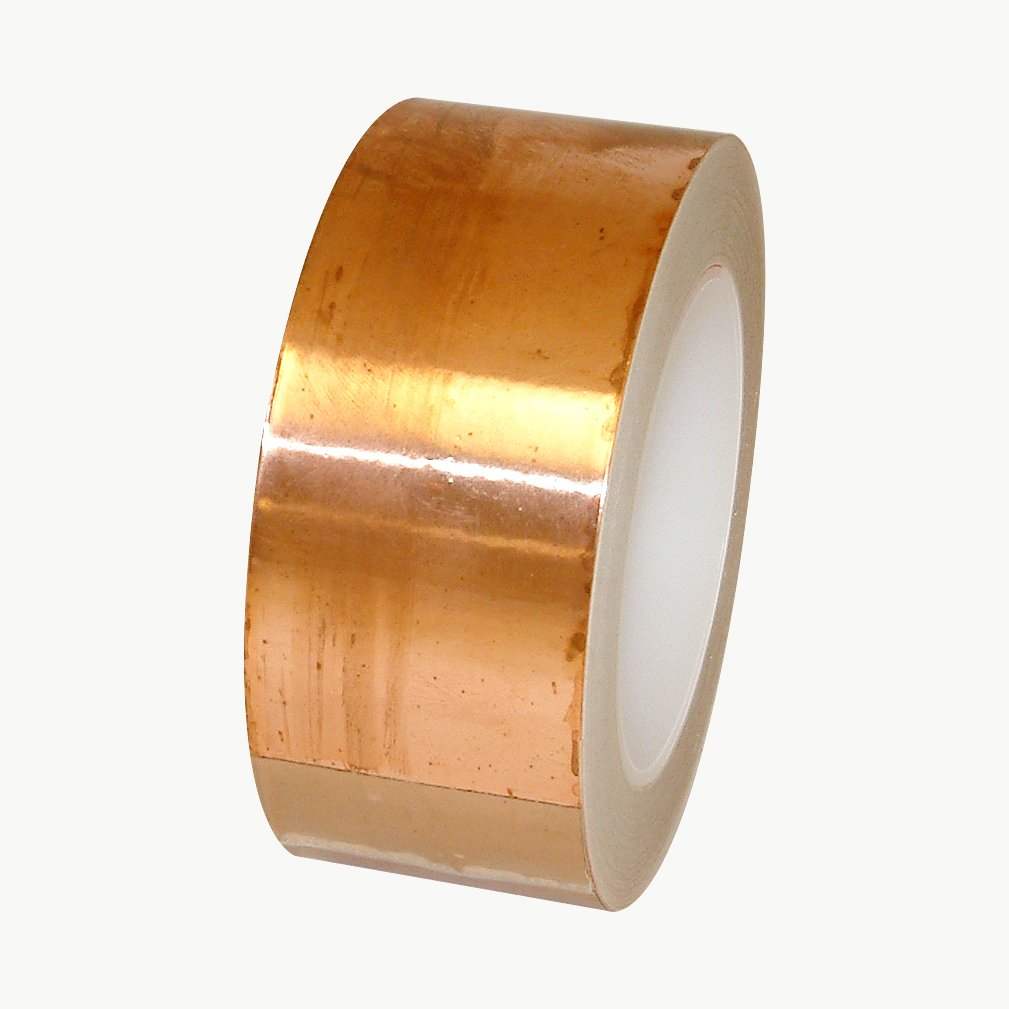

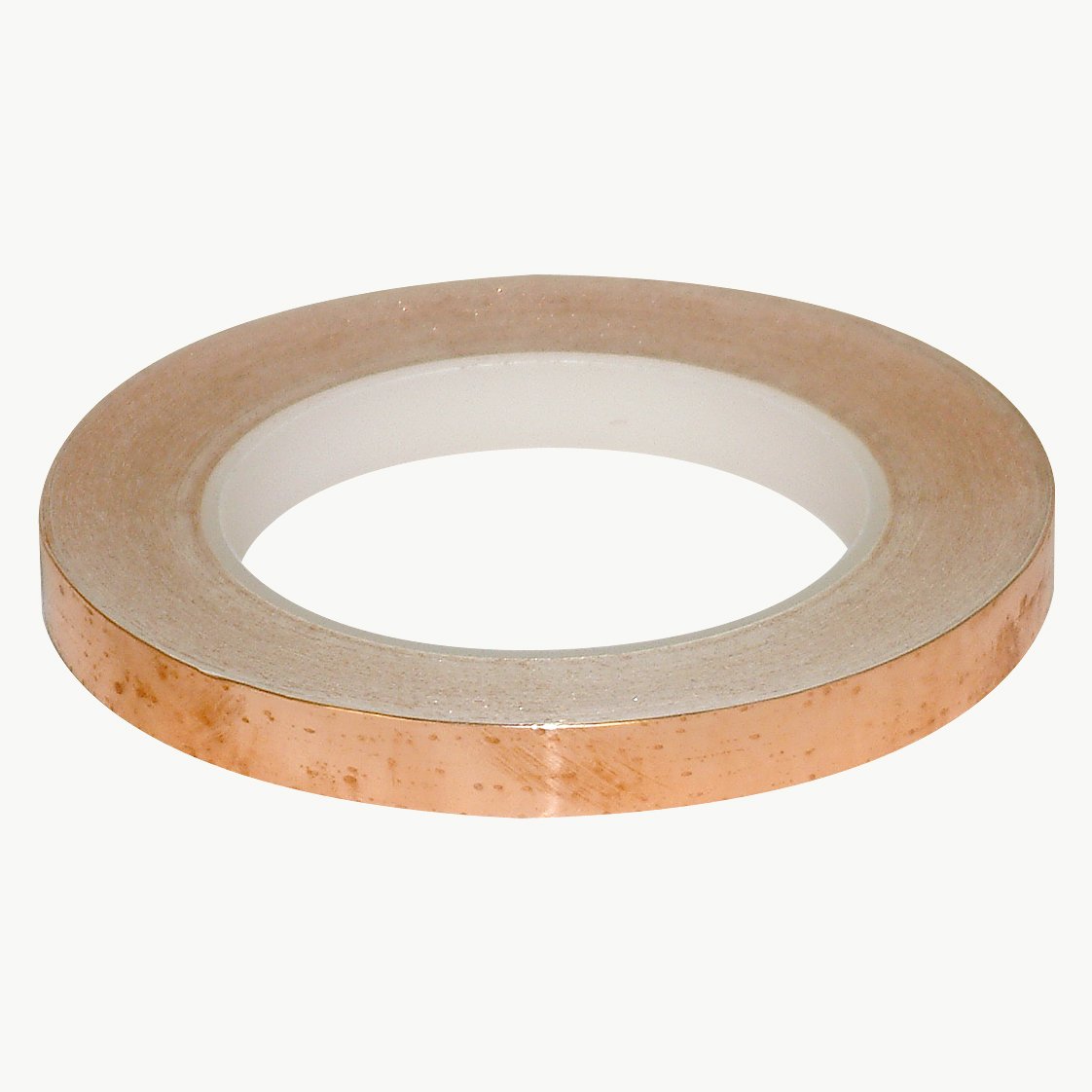

JVCC CFL-5CA Conductive Copper Foil Tape with Adhesive - 2 Inch x 36 Yards Roll - EMI Shielding, Electrical Repairs, Grounding, Crafts - Perfect for Electronics, HVAC, DIY Projects & Artwork

JVCC CFL-5CA Copper Foil Tape is a 1 ounce rolled copper foil which provides excellent solderability and conformity. Used for RFI/EMI (electromagnetic interference/radio-frequency interference) shielding applications in the electrical/electronics industry (used to shield integrated circuit chips, cables, and motors). CFL-5CA is coated with an acrylic adhesive which is uniformly dispersed with conductive spheres. Its conductive adhesive is ideal for printed circuit board modification, security-alarm circuit repairs, and prototype wiring-board layout and design. Also for cable wrapping to provide EMI/RFI shielding, seaming of EMI/RFI shielded rooms for electrical continuity, static charge draining and for surface contact to non-solderable materials (e.g. aluminum or plastics). The copper foil sheet resistivity is 0.003 Ohms/square inch. Its aggressive acrylic adhesive system creates a superior bond. Annealed and non-tarnishing, bright copper color. Flammability: File #130121, UL 510, Section 4. Can also be used for decorative arts & crafts projects. Country of Origin: Italy. Warning: This product can expose you to chemicals including Toluene, which is [are] known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/.

JVCC CFL-5CA Copper Foil Tape is a 1 ounce rolled copper foil which provides excellent solderability and conformity. Used for RFI/EMI (electromagnetic interference/radio-frequency interference) shielding applications in the electrical/electronics industry (used to shield integrated circuit chips, cables, and motors). CFL-5CA is coated with an acrylic adhesive which is uniformly dispersed with conductive spheres.

Its conductive adhesive is ideal for printed circuit board modification, security-alarm circuit repairs, and prototype wiring-board layout and design. Also for cable wrapping to provide EMI/RFI shielding, seaming of EMI/RFI shielded rooms for electrical continuity, static charge draining and for surface contact to non-solderable materials (e.g. aluminum or plastics).

Thickness 3 mils (carrier, adhesive) 1.6 mils (adhesive) 1.4 mils (carrier). Elongation 6%. Carrier/Backing copper foil. Adhesive conductive acrylic.

Electrical Resistance 0.003 Ohms/square inch. Adhesion 70 ounces per inch (to stainless steel test panel). Tensile Strength 36 pounds per inch (longitudinal). Service/Operating Temperature up to 311F.

Standards Met File #130121, UL510, Section 4. Release Liner 60# paper. Core 3-inch diameter neutral.
