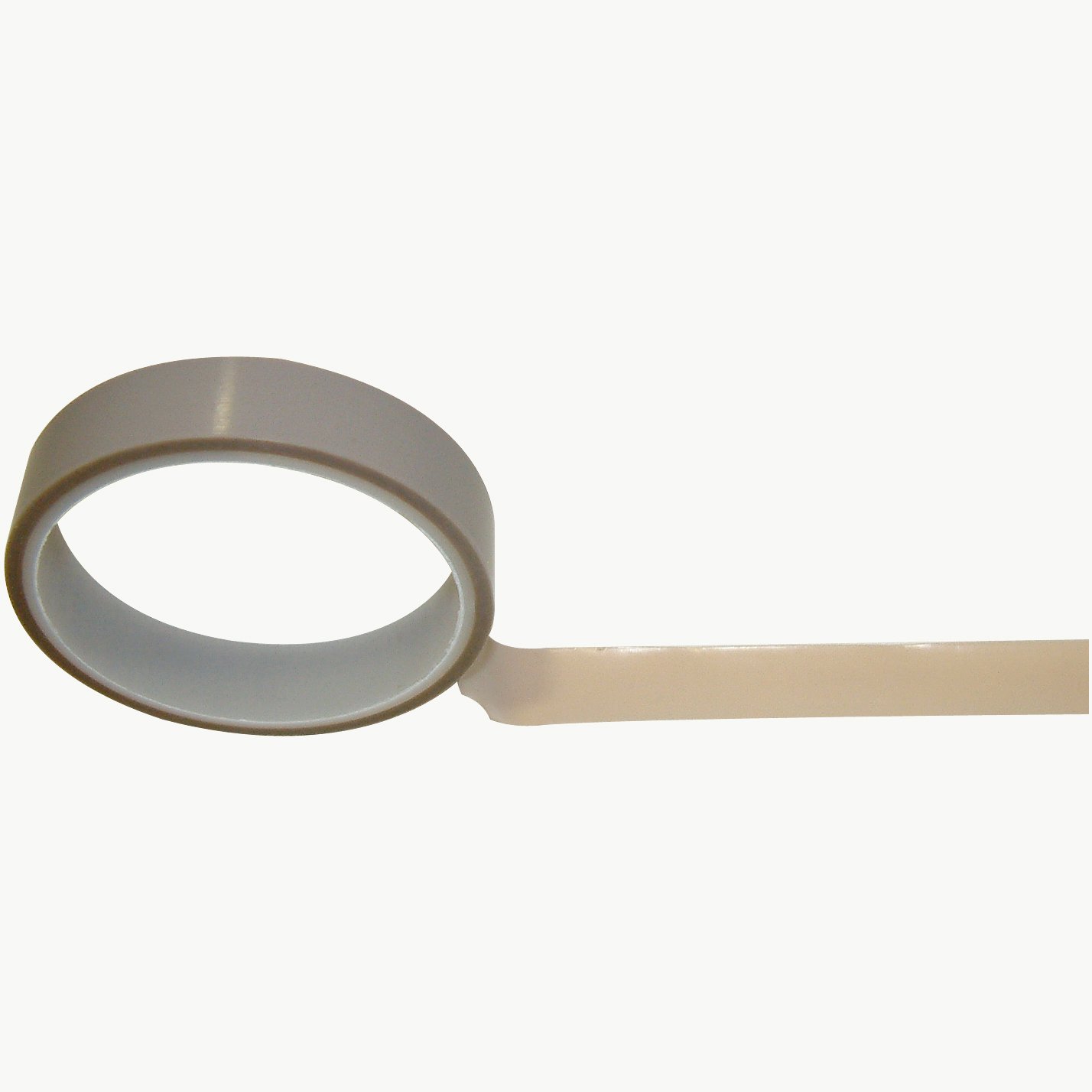

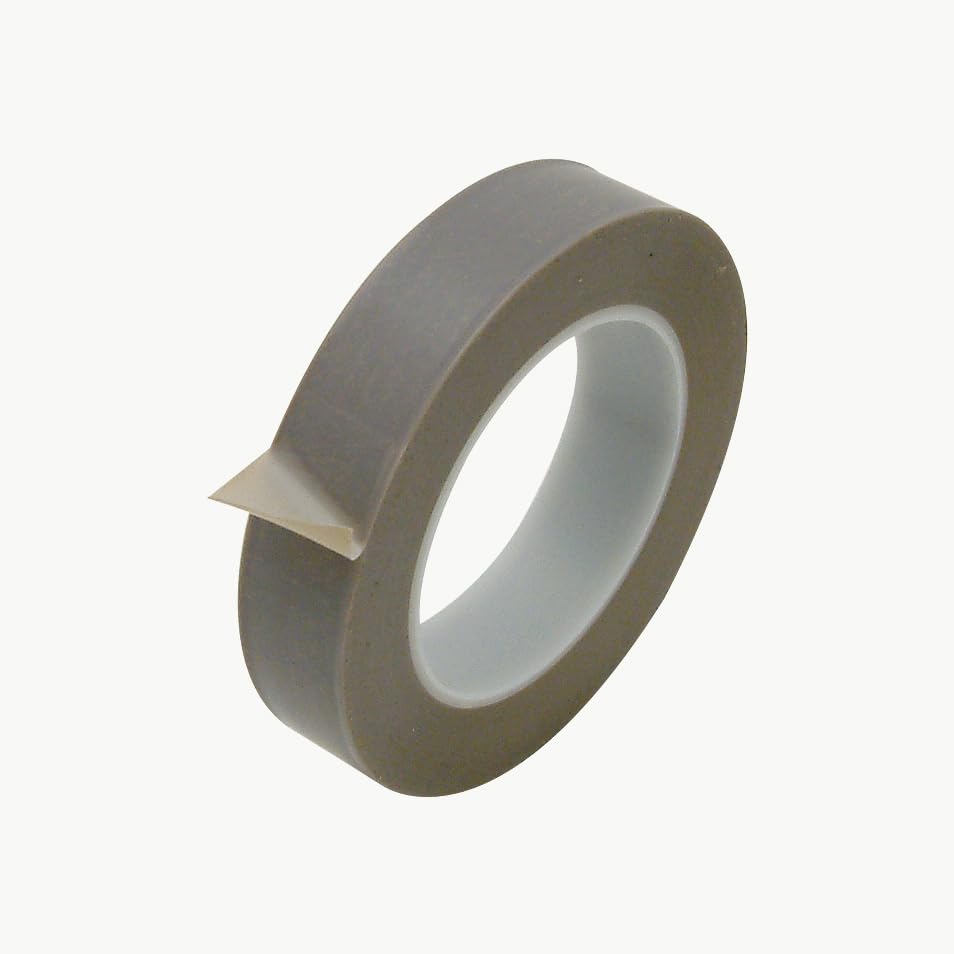

JVCC Skived PTFE Film Tape 1 in x 36 yds - 5 Mil High Temperature Resistant Adhesive Tape (Grey) for Electrical Insulation, Pipe Thread Sealing & Industrial Applications

JVCC PTFE-5 Skived PTFE Film Tape is a 5 mil pure skived PTFE film tape with a high temperature silicone adhesive. It comes self-wound without a liner. Used in electrical applications such as harness/coil wraps & separators, transformers and slot liners where good insulation and heat resistance are required. Also used in mechanical applications such as heat sealing bars & jaws, labeling machine pressure pads, chute liners, anti-friction devices, bearings, forming dies, aircraft mold release & guide rails where high temperature, maximum slip, and lubricity are required. High elongation of PTFE-5 permits tight wrapping and conforms to sharp bends/irregular surfaces. Country of Origin: United States. The color name grey can also be spelled as gray.

JVCC PTFE-5 Skived PTFE Film Tape is a 5 mil pure skived Teflon PTFE film tape with a high-temperature silicone adhesive. It comes self-wound without a liner.

Used in electrical applications such as harness/coil wraps & separators, transformers and slot liners where good insulation and heat resistance are required.

Also used in mechanical applications such as heat sealing bars & jaws, labeling machine pressure pads, chute liners, anti-friction devices, bearings, forming dies, aircraft mold release & guide rails where high temperature, maximum slip and lubricity are required.

High elongation of PTFE-5 permits tight wrapping and conforms to sharp bends/irregular surfaces.

Carrier/Backing polytetrafluoroethylene (PTFE) film / pure skived. Adhesive silicone. Thickness 7.2 mils (carrier, adhesive) 5 mils (carrier). Adhesion 30 ounces per inch (to stainless steel test panel). Tensile Strength 15 pounds per inch (longitudinal). Dielectric Breakdown 12000 volts. Service/Operating Temperature -100F to 500F. Elongation 200%. Core 3-inch diameter.
