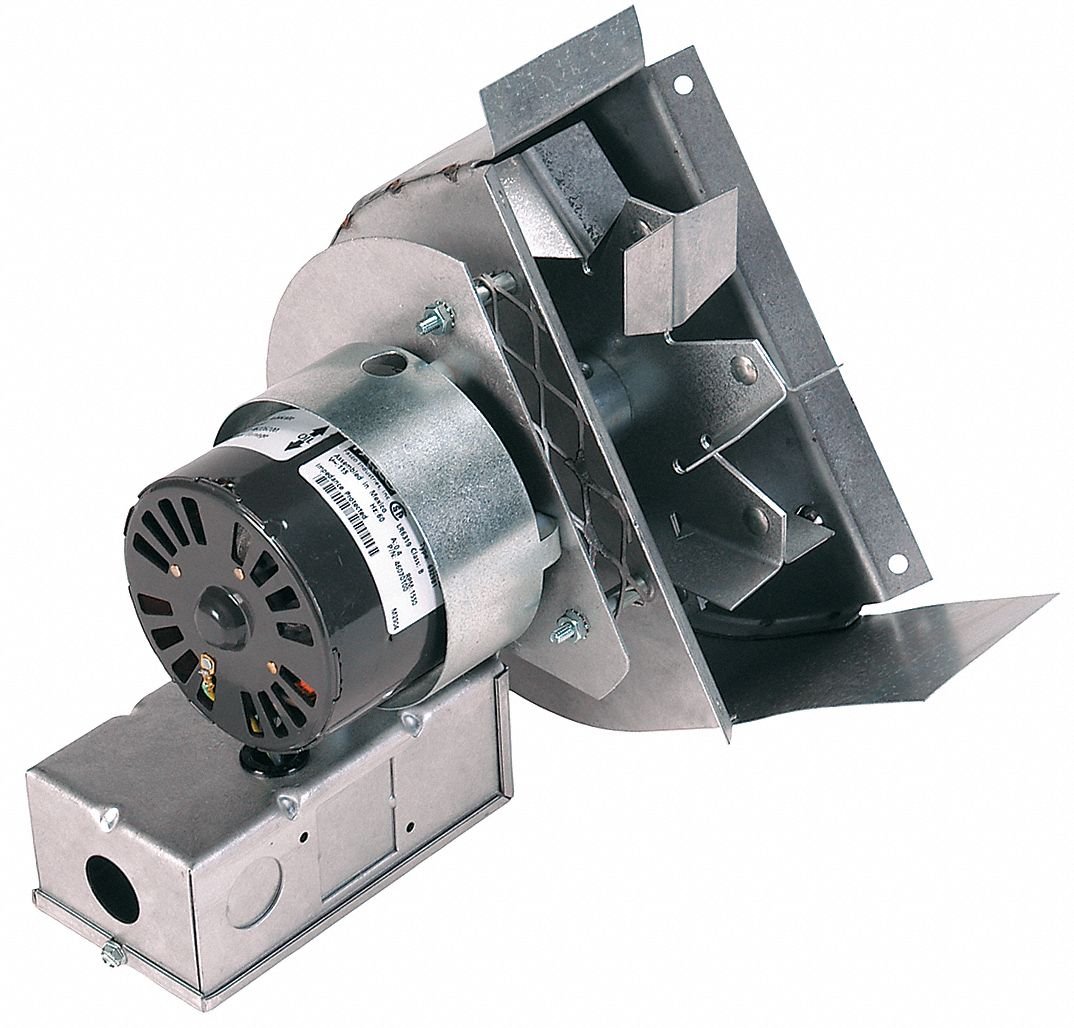

Field Controls DI-2 Draft Inducer for 5-8" Pipe - Replacement for Tjernlund D-3/D3 - HVAC System Ventilation Booster for Improved Airflow in Homes & Commercial Buildings

DI-2 DRAFT INDUCER FOR 5-8" PIPE Field Draft Inducers solve the drafting problems caused by short chimneys, undersized flue pipes and negative building pressures. Draft Inducers are designed for easy installation in a wide variety of applications, including oil or gas-fired furnaces, water heaters, and boilers. For venting single or multiple appliances, use a control kit. DI Paks are available for 24 volt and millivolt applications and include all controls necessary. When to use a Draft Inducer Long horizontal vent runs Undersized flue pipes Short chimneys Outside exposed chimney How Draft Inducers Work 1. Thermostat calls for heat. 2. The Inducer control is activated. This energizes the Draft Inducer (A) which creates negative pressure or draft. 3. The draft closes the negative pressure proving switch and starts the burner (B). 4. When the thermostat is satisfied, both the burner and Draft Inducer shut down Field Controls DI-2 DRAFT INDUCER FOR 5-8" PIPE Replaces D-3, D3

DI-2 DRAFT INDUCER FOR 5-8" PIPE

115 Volt

Replaces D-3, D3

Field Controls DI-2 DRAFT INDUCER FOR 5-8" PIPE Replaces D-3, D3
