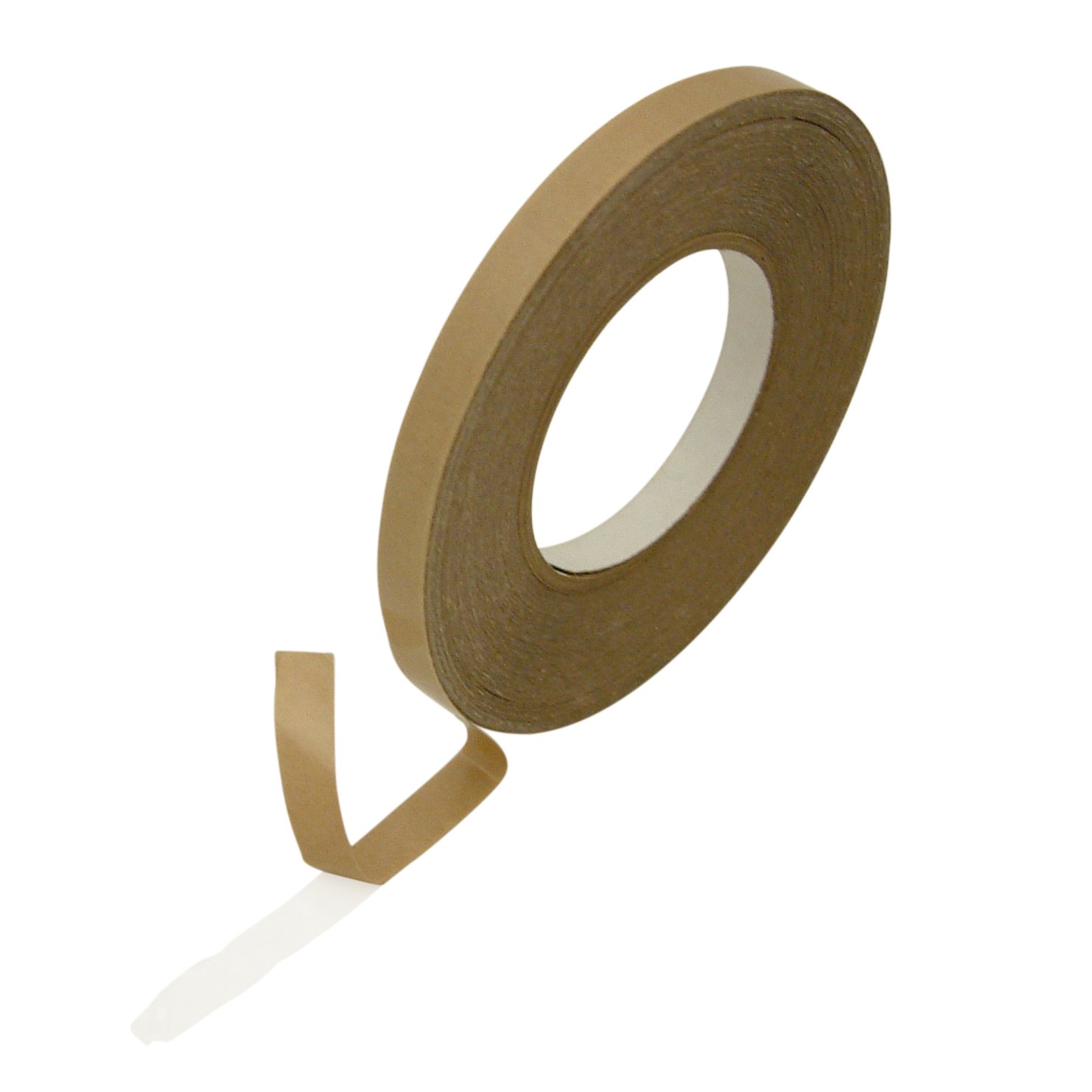

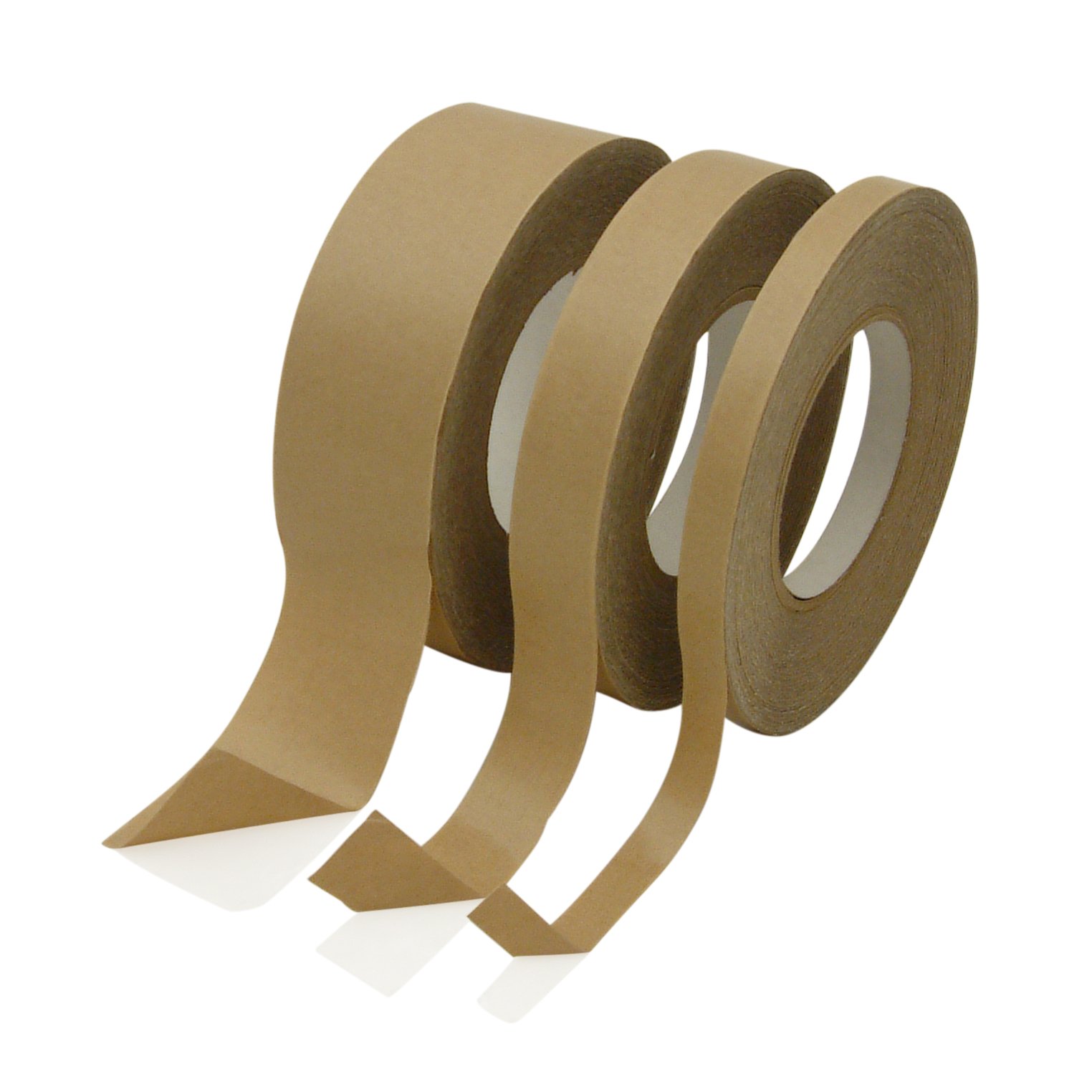

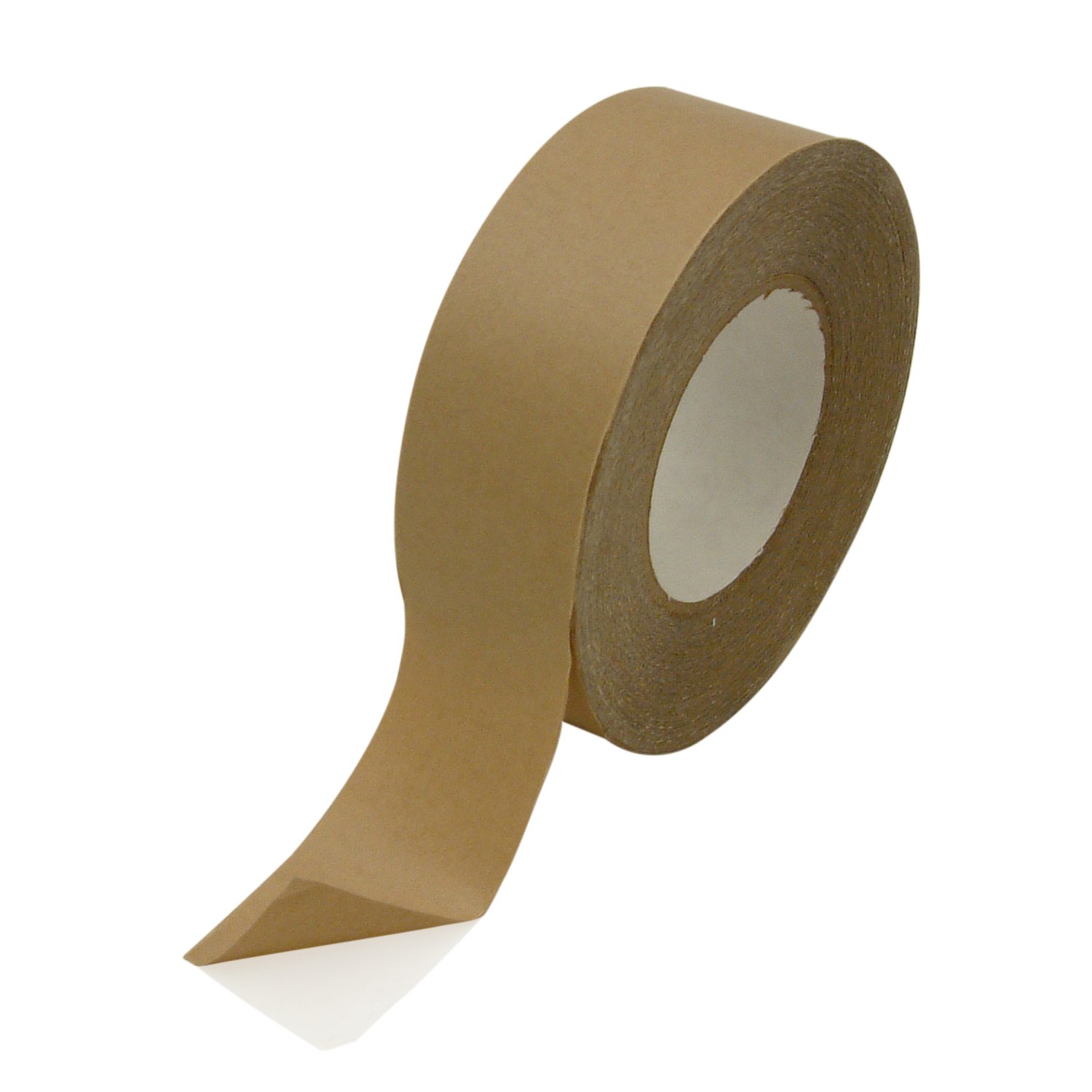

JVCC TR-5A Adhesive Transfer Tape is an unsupported (it does not have a backing and is only adhesive) acrylic adhesive transfer film tape on a siliconized paper liner. Please note the tape is not reverse wound or on a 1-inch core like an ATG tape so does not require an ATG dispenser to apply it (please note that it will not fit or work in an ATG dispenser for these reasons).
JVCC TR-5A's glass stabilization allows for lathe slitting and cleaner unwinding. Its thick adhesive coating coupled with high quick tack and good shear strength makes this the best choice for more demanding bonding/joining applications, especially for textured, rough surfaces.
If the application involves laser cutting a transfer tape such as JVCC TR-5A is preferred. Used for core starting, splicing of papers, films, metals, and other webs.
The tape is also suitable as a laminating adhesive for foams or fabrics. The manufacturer states this transfer tape is acid-neutral based on lab tests; however, there is no standardized test for pH for materials not soluble in water and this transfer tape is not soluble in water.
Carrier/Backing N/A (Unsupported). Adhesive glass stabilized solvent based acrylic. Release Liner brown siliconized paper. Thickness 8.45 mils (carrier, adhesive, liner) 4.7 mils (carrier, adhesive) 4.7 mils (adhesive) 3.75 mils (liner). Adhesion 105 ounces per inch (to stainless steel test panel). Service/Operating Temperature -22F to 230F. Core 3-inch diameter.
